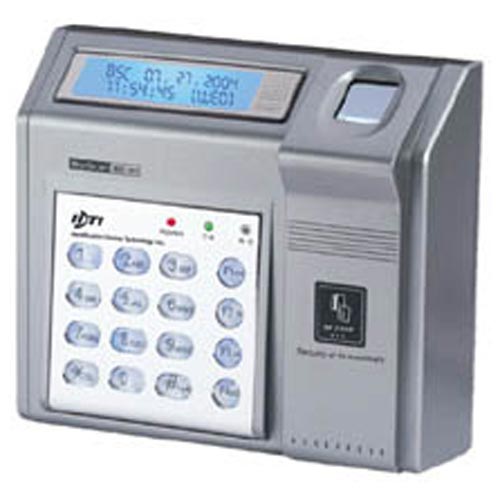

BioScan BSC-101 Fingerprint Access Control System

BioScan BSC-101 Fingerprint Access Control System – Cost-Effective Biometric Security Solution in Bangladesh

The BioScan BSC-101 Fingerprint Access Control System is a cost-effective, all-in-one biometric security solution designed to deliver reliable access control for offices, factories, industrial sites, and commercial buildings in Bangladesh. By combining a fingerprint reader, proximity card reader, and PIN keypad into a single device, the BSC-101 significantly reduces cost per door while enhancing overall security and accountability.

This system is ideal for organizations looking to upgrade from traditional card-based access control to biometric verification without replacing existing infrastructure.

All-in-One Access Control Solution

The BioScan BSC-101 integrates multiple authentication methods into one compact unit:

• Fingerprint verification

• Proximity card access

• PIN-based authentication

This multi-factor approach ensures flexibility for different user roles while maintaining a high level of security. It is suitable for corporate offices, industrial facilities, construction sites, educational institutions, hospitals, and commercial buildings across Bangladesh.

Advanced Fingerprint Recognition Technology

One of the key strengths of the BioScan BSC-101 is its advanced fingerprint recognition capability. The system is designed to perform accurately even under adverse conditions, such as:

• Dirty or worn fingerprints

• Industrial environments

• Construction and factory settings

This makes the device especially useful for factories, plants, and outdoor or semi-outdoor installations, where traditional biometric systems often fail.

Easy Integration with Existing Systems

The BioScan BSC-101 is built with easy integration in mind, allowing organizations to protect their existing security investments.

• Seamless integration with card-based access control systems

• Supports standard communication protocols

• Compatible with common reader technologies

This flexibility enables businesses in Bangladesh to upgrade security gradually without replacing their entire access control infrastructure.

User-Friendly Interface and Operation

Designed for everyday users, the BioScan BSC-101 features:

• Clear LCD display with step-by-step instructions

• Audiovisual indicators for access status

• Simple fingerprint enrollment and administration

The system is intuitive, reducing training time and minimizing operational errors, making it suitable for both technical and non-technical users.

Convenient and Secure Access Management

By replacing passwords and manual registers, the BioScan BSC-101:

• Eliminates password overload

• Reduces the risk of unauthorized access

• Improves accountability

• Provides true non-repudiation

This results in a more secure, transparent, and efficient access control process for organizations of all sizes.

Standalone and Network Operation

The BioScan BSC-101 supports both standalone and network-based operation.

• Can operate independently for single-door installations

• Can be connected to a PC-based administration system

• Supports centralized monitoring and management

This makes it suitable for small offices as well as multi-door enterprise environments.

Flexible Communication Options

The system offers multiple communication interfaces to ensure compatibility with various setups:

• TCP/IP (optional Ethernet)

• RS232

• RS422

• RS485

• Wiegand (26-bit standard)

These options allow smooth deployment across different building layouts and distances.

Performance and Reliability

The BioScan BSC-101 delivers fast and accurate biometric verification:

• Verification time: 0.5 to 1 second

• FAR (False Acceptance Rate): 0.00008%

• FRR (False Rejection Rate): 0.09%

• Reading range: Approximately 10 cm

This ensures both security and user convenience even during peak entry times.

Storage Capacity

• User registration: 1,670 fingerprint templates

• Transaction buffer: 16,000 access records

These capacities make the device suitable for medium to large organizations in Bangladesh.

Input, Output, and Expandability

• Customizable 6 inputs and 2 outputs

• Supports external readers (ISR-100, ISR-200)

• Compatible with HID, Mifare, and EM card readers

This expandability allows the system to adapt to complex security requirements.

Durable Design for Bangladeshi Environments

• Housing material: ABS (Polycarbonate)

• Operating temperature: -10°C to 50°C

• Humidity tolerance: 10% to 90%

The robust construction ensures stable performance in hot, humid, and industrial environments common in Bangladesh.

Software Support Options

The BioScan BSC-101 is compatible with professional management software:

• SILVER – Access Control Software

• GOLD – Access Control and Time Attendance Software

This allows organizations to manage access rights, logs, and attendance from a centralized platform.

Power and Installation

• Power requirement: 12V DC, 500mA

• Recommended cables for long-distance installations:

  • Belden 9329 (22 AWG) up to 305m

  • Belden 9369 (18 AWG) up to 1220m

This ensures reliable communication even in large facilities.

Why Choose BioScan BSC-101 in Bangladesh?

Here’s what really matters:

• Cost-effective biometric access control

• Reliable fingerprint recognition in harsh environments

• Multiple authentication options

• Easy integration with existing systems

• Suitable for factories, offices, and commercial buildings

• Scalable for future expansion

The BioScan BSC-101 Fingerprint Access Control System is a practical, reliable, and affordable biometric security solution for Bangladesh. Whether you’re securing a single door or deploying a networked access control system across a large facility, the BSC-101 delivers the right balance of security, flexibility, and cost efficiency.
