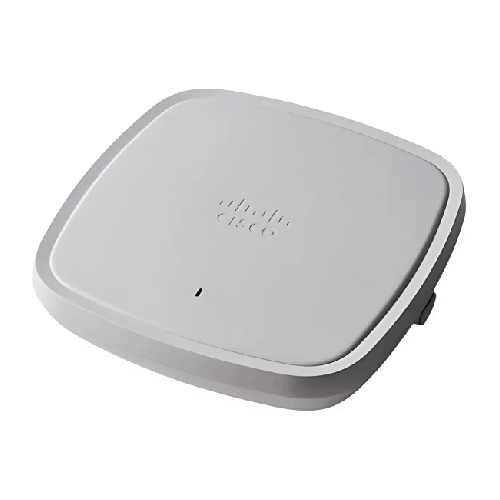

Cisco Catalyst C9120AXI-C Dual Band Access Point

Cisco Catalyst C9120AXI-C Dual Band Access Point in Bangladesh

The Cisco Catalyst C9120AXI-C Dual Band Access Point is a high-end Wi‑Fi 6 (802.11ax) AP built for demanding indoor environments where wireless is no longer “nice to have” but absolutely mission‑critical. Part of Cisco’s Catalyst 9100 family, this AP is engineered for high-density deployment, powerful security, and future‑ready speeds, making it a natural fit for enterprises, banks, universities, hospitals and large offices across Bangladesh.

With 4x4 MIMO, four spatial streams, support for multi‑user MIMO (MU‑MIMO), peak antenna gain of 4 dBi at 2.4 GHz and 5 dBi at 5 GHz, and a PHY rate up to 5.38 Gbps, the C9120AXI-C is designed for the kind of load you see in modern networks: crowded floors filled with laptops and phones, Wi‑Fi 6 clients, voice and video collaboration, and IoT devices all sharing the same air.

Instead of stringing together consumer APs that buckle under real-world loads, the C9120AXI-C gives you a part of the same architecture used globally in sophisticated Cisco networks—controlled, secure and centrally managed.

Wi‑Fi 6 at the Edge – Performance for Today and Tomorrow

The C9120AXI-C supports IEEE 802.11ax (Wi‑Fi 6) as well as older standards (a/b/g/n/ac). That means it can talk to:

Legacy clients (802.11a/b/g/n/ac),
New Wi‑Fi 6‑capable clients with 802.11ax,
All at the same time on both bands: 2.4 GHz & 5 GHz.
Key performance figures from your spec:

Maximum PHY data rate:
Up to 5.38 Gbps (aggregate),
Data transfer rates (per standard):
Up to 890 Mbps on 802.11n,
Up to 3.47 Gbps on 802.11ac,
Up to 5.38 Gbps on 802.11ax.
In a real Dhaka office, a campus building or a hospital wing:

Dozens of users can be on video calls while others work on cloud ERP/CRM and yet others stream or upload training content,
Wi‑Fi 6 features like OFDMA and MU‑MIMO help maintain performance by scheduling and serving clients more efficiently,
Legacy devices still work, but new 802.11ax clients get the full benefit of Wi‑Fi 6.
4x4 MU‑MIMO with Four Spatial Streams – Built for Density

The 4x4 MIMO design with support for four spatial streams and MU‑MIMO means:

The AP can communicate with multiple devices simultaneously rather than strictly in series,
Uplink and downlink efficiency is improved in high‑client environments,
The AP can better handle a mix of low‑bandwidth and high‑bandwidth clients.
Official description snippet:

MU-MIMO Support: Supporting four spatial streams, Multiuser Multiple Input, Multiple Output (MU-MIMO) enables access points…

In Bangladeshi deployments:

A single C9120AXI-C can comfortably serve a busy office or classroom, where each user has a laptop and smartphone connected,
In lecture halls or training rooms, many Wi‑Fi 6‑capable devices can join, and the AP handles concurrency without melting down,
Corporate floors with dense AP layouts benefit from C9120AXI-C’s RF capabilities, especially when managed by a Cisco wireless controller.
Enterprise-Grade Security – WPA/WPA2/WPA3 & 802.1X

Your spec confirms enterprise-grade wireless security:

WPA/WPA2/WPA3 support,
802.1X authentication,
Integration into enterprise security stacks.
This enables:

WPA3 for newer clients for:
Enhanced encryption,
Better resiliency against password guessing,
Protected Management Frames (PMF) and other modern benefits.
WPA2‑Enterprise and 802.1X:
With RADIUS/ISE/AD for staff authentication,
Per‑user credentials instead of shared pre-shared keys (PSKs),
Identity-based policies (VLAN, ACL assignment, posture).
For Bangladesh:

Banks, corporates and government organisations can maintain strict authentication and logging for Wi‑Fi,
Universities can tie wireless access to student/staff accounts,
Healthcare can protect patient data even on wireless segments by properly isolating and authenticating traffic.
C9120AXI-C acts as the radio enforcement point, while your Cisco WLC and back-end identity systems provide centralised policy.

Multigigabit Ethernet Uplink – 2.5G Ready for Wi‑Fi 6

The Cisco Catalyst C9120AXI-C provides:

1 x 100/1000/2500 Mbps Multigigabit Ethernet RJ‑45 port, compliant with IEEE 802.3bz.
Why 2.5G matters:

A Wi‑Fi 6 AP like C9120AXI-C can push well over 1Gbps aggregate traffic across both bands if many clients are active,
A classic 1GbE uplink can become a choke point, undermining the benefit of advanced radio features,
With 2.5G multigig uplink (and a compatible multigig switch), you get more headroom for AP throughput.
For Bangladesh:

As more offices deploy 10G or multigig switching in their access layer, C9120AXI-C can fully exploit those improvements,
Working with Catalyst 9300 multigig models or similar, you can build access stacks that aren’t artificially limited by AP uplinks.
If you’re planning a Wi‑Fi 6 rollout, pairing APs with multigig capable switches is an important strategic move.

Radio & Antenna Details – Optimised Indoor Coverage

According to your spec:

Antenna placement: Internal,
Antenna gain:
2.4 GHz, peak gain 4 dBi,
5 GHz, peak gain 5 dBi,
Transmit power (2.4 GHz):
23 dBm to -4 dBm (adjustable range).
These figures show:

The AP is designed to produce strong, yet tunable indoor coverage,
Power levels can be controlled (usually by the controller) to:
Avoid overlapping interference,
Optimise cell size for your channel plan.
In Bangladesh:

For a typical office floor, you place APs such that coverage zones overlap slightly,
The controller (e.g., Catalyst 9800) or Cisco DNA uses these power/gain capabilities to implement RRM (Radio Resource Management), automatically tuning channels and power.
Hardware Resources – 2GB DRAM, 1GB Flash

The C9120AXI-C includes:

2,048 MB (2GB) DRAM,
1,024 MB (1GB) flash.
This resource allocation:

Supports advanced Wi‑Fi 6 features and complex wireless policies,
Allows enough space for:
Running image,
Backup image,
Config and telemetry,
Supports integration with Cisco DNA analytics and advanced telemetry.
The AP isn’t just a simple radio; it’s a smart edge device that can participate in sophisticated Cisco architectures.

System Software Requirements & Controller Ecosystem

Your spec lists system requirements:

Cisco Unified Wireless Network Software Release 8.9.x,
Cisco IOS XE Software Release 16.11 with AP Device Pack,
Supported Cisco wireless LAN controllers.
This means:

To use C9120AXI-C properly, you must ensure your WLC or Cisco controller platform:
Is at or above the minimum software versions,
Has the appropriate AP Device Pack for recognition and management,
For greenfield Wi‑Fi 6 deployments, organisations often use:
Cisco Catalyst 9800 Series WLCs (physical or virtual),
Or embedded wireless on certain Catalyst switches, with appropriate IOS XE.
In Bangladesh:

If you’re refreshing from older controllers (like 2500/5500/8500), part of the Wi‑Fi 6 project may include:
Migrating to newer WLC platforms,
Aligning controller, switch and AP code versions.
BME or your Cisco partner can help you clarify compatibility and design.

Environmental Characteristics

From the specification:

Operating / storage temperature: -30° to 70°C (probably survival/storage range; operational ranges are typically narrower in official datasheet),
Power consumption: 25.5W,
Dimensions: 21.6 x 21.6 x 4.3 cm,
Weight: 1.3 kg.
Even though the AP is for indoor use, these values indicate:

It has some tolerance for higher ambient temperatures (very useful in Bangladesh if server/network rooms are not perfectly cooled),
It draws up to 25.5W, which is within the PoE+ (802.3at) domain—so plan your switch/injector budgets accordingly.
Deployed properly, the AP is compact and robust enough for typical indoor telecom rooms and ceilings in Bangladesh’s climate.

✅ Key Features

Wi‑Fi 6 (802.11ax) Dual-Band AP: Supports 2.4 GHz & 5 GHz with backward compatibility to a/b/g/n/ac.
4x4 MU‑MIMO with Four Spatial Streams: Handles many concurrent clients with efficient use of air time.
Up to 5.38 Gbps PHY Rate: High aggregated data rates across radios for performance-demanding enterprises.
WPA/WPA2/WPA3 & 802.1X Security: Enterprise-grade wireless security for staff and guest networks.
Multigigabit Ethernet Uplink (100/1000/2500 Mbps): 2.5G uplink prevents the AP from being limited by a 1Gbps wired bottleneck.
2GB DRAM & 1GB Flash: Sufficient system resources for advanced features and future firmware.
Controller-Based Architecture: Designed to work with Cisco WLCs under Cisco Unified Wireless Network and IOS XE environments.
✅ Usage / Applications

Head offices and branch offices needing high-performance Wi‑Fi for staff and guests.
Universities, colleges and schools requiring Wi‑Fi 6 coverage for students, BYOD and e‑learning.
Hospitals and clinics supporting wireless clinical apps, staff mobility and secure guest access.
Retail, malls and hospitality offering reliable, secure wireless experiences to customers and staff.
Industrial/IoT deployments inside factories or warehouses where many devices and sensors need connectivity (in properly protected indoor zones).
✅ Benefits of This Product?

Greatly improves user experience in high-density wireless environments, reducing congestion and wait times.
Enhances security posture with WPA3 and 802.1X enterprise capabilities.
Protects your investment by supporting existing devices while preparing for next-generation Wi‑Fi 6 clients.
Reduces wired bottlenecks using a 2.5G multigig uplink, ensuring the AP can deliver on its wireless potential.
Integrates into Cisco’s broader ecosystem, enabling automation, analytics and policy-based management.
✅ Ideal For

The Cisco Catalyst C9120AXI-C Dual Band Access Point is ideal for:

Large and mid-sized enterprises in Bangladesh that are serious about upgrading to Wi‑Fi 6 with Cisco,
Financial institutions and government agencies requiring secure, policy-driven wireless with identity-based access,
Academic campuses that see heavy device usage and need efficient, centrally managed Wi‑Fi expansion,
Healthcare networks that cannot tolerate flaky wireless for critical apps or clinical devices,
System integrators building robust Cisco-based WLANs for demanding, multi-site customers.
If you are planning a new wireless project or refreshing ageing APs and want a Cisco solution you can standardise on for the next several years, C9120AXI-C fits that role.

✅ Why Choose the Cisco Catalyst C9120AXI-C Dual Band Access Point?

You choose the C9120AXI-C because:

It is part of Cisco’s Catalyst 9100 Wi‑Fi 6 family, representing the current generation of enterprise wireless,
It supports the full stack of Cisco features—from basic connectivity to advanced analytics and automation via Cisco DNA,
It provides Wi‑Fi 6 performance, WPA3 support and multigig uplinks in a single integrated unit,
It allows you to build wireless properly—with controllers, policy, segmentation and monitoring—rather than piecemeal.
Compared to older 802.11n/ac APs, or to non‑enterprise brands, the C9120AXI-C:

Handles client density and traffic patterns better,
Offers stronger and more future-proof security,
Fits cleanly into a well-understood Cisco environment.
For Bangladesh networks that want to modernise the campus edge with as few compromises as possible, it’s an obvious candidate.

✅ Why Buy This Product from BME?

Buying the Cisco Catalyst C9120AXI-C from Business Machine & Equipment (BME) ensures:

Genuine Cisco equipment tailored for enterprise use in Bangladesh,
Access to local expertise on:
AP density planning,
WLC compatibility,
Switch and PoE requirements,
Basic RF considerations,
B2B-friendly procurement:
Detailed quotations,
Product documentation,
VAT-compliant invoices and delivery notes needed by corporates, banks and SIs,
Product-centric guidance that helps you:
Select between 9115 vs 9120 vs 9130 models where relevant,
Align wireless upgrades with your overall Cisco network roadmap.
Instead of treating each AP as a standalone purchase, BME helps you think of C9120AXI-C within your full wireless strategy.

✅ Buying Guide

Before you invest in the Cisco C9120AXI-C:

1. Confirm Controller Readiness

Check your existing WLC or Cisco wireless platform supports Catalyst 9100 APs at the necessary release levels,
If not, plan a WLC or software upgrade/migration.
2. Do a Site Survey

Evaluate:
Floor plans,
Wall materials,
Device counts,
Application requirements.
Determine how many C9120AXI-C APs are required and where they should be installed.
3. Plan Multigig Switching

Identify which switches will provide:
PoE/PoE+,
2.5G multigig on critical AP uplinks,
Budget accordingly for Catalyst 9300 multigig or equivalent.
4. Design Security & Segmentation

Map SSIDs to VLANs and firewall rules,
Decide on WPA2/WPA3, 802.1X, guest portal and IoT segmentation.
5. Budget and Phasing

Decide whether:
To deploy C9120AXI-C across all sites at once,
Or phase upgrades starting with highest-impact areas (boardrooms, main offices, lecture halls).
6. Engage Cisco-Experienced SIs

For complex WLANs, partner with integrators who know:
Cisco Wi‑Fi 6,
DNA Centre/ISE,
Bangladesh’s RF and cabling realities.
✅ Customers Ask About / Frequently Asked Questions

Q1: Is the C9120AXI-C an indoor AP?
Yes. It is designed for indoor use only, even though its hardware spec shows wide survival temperatures. For outdoor, use dedicated outdoor Cisco models.

Q2: Does it support Wi‑Fi 6?
Yes. It is a Wi‑Fi 6 (802.11ax) AP and backwards compatible with 802.11a/b/g/n/ac.

Q3: Can it work without a controller?
It is intended for controller-based deployment within Cisco’s Unified Wireless Network. Some advanced modes may allow embedded/virtual controllers—check Cisco docs. But typically, you should plan for a WLC (Catalyst 9800 or equivalent).

Q4: What kind of Ethernet uplink does it need?
It uses 1 x 100/1000/2500 Mbps multigigabit Ethernet (RJ‑45) and is powered via PoE/PoE+ from compatible switches or injectors.

Q5: Does it support WPA3?
Yes. It supports WPA/WPA2/WPA3 and enterprise security capabilities like 802.1X when used in a supported controller environment.

Q6: Will it work with my existing older Cisco APs on the same controller?
Often yes, provided the controller runs a version that supports both older APs and Catalyst 9100 series. Always confirm in Cisco’s compatibility guides.

Q7: Is there warranty in Bangladesh when buying from BME?
Yes. Warranty terms follow Cisco’s official policies and BME’s arrangements. Confirm warranty length and specific coverage at purchase.

Q8: Is the C9120AXI-C overkill for a small office?
It can be, but smaller offices that expect to grow or have high-density needs may still benefit. For very small sites, Cisco has more compact models or Meraki options; BME can help compare.

✅ Why Buy This Product

The Cisco Catalyst C9120AXI-C Dual Band Access Point brings the capabilities of Wi‑Fi 6, enterprise security, and multigigabit uplinks into a single, robust device ready for modern Bangladesh networks. It’s a future-proof platform that can handle rising client counts, heavier cloud usage, and stricter compliance requirements without needing replacement in the near term.

If you’re planning a serious investment in wireless that will underpin your organisation’s productivity, collaboration and digital services, this AP gives you the kind of headroom and reliability that cheaper or older gear simply doesn’t offer.

Order the Cisco Catalyst C9120AXI-C Wi‑Fi 6 Access Point from BME today and start building a wireless network that can carry your organisation comfortably into the next several years of growth and change.
