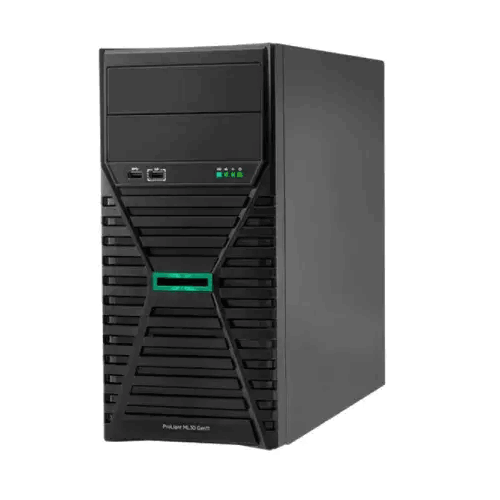

HPE Proliant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server

HPE Proliant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server Price in Bangladesh

The HPE ProLiant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server is a compact yet powerful entry‑level server designed for small and medium businesses, branch offices, and remote sites in Bangladesh. Built by HP Enterprise and based on the Intel C262 chipset, it combines a 4‑core Intel Xeon E‑2414 processor, DDR5 memory support, enterprise‑class hardware RAID, and strong security features in a tower form factor that fits easily into typical office environments.

This particular configuration, the HPE ML30 Gen11 4LFF Hot Plug CTO Server, is equipped with:

• 1 x Intel Xeon E‑2414 2.6GHz 4‑core 55W FIO processor
• Intel C262 chipset
• 2 x HPE 16GB Single Rank x8 DDR5‑4800 CAS‑40 Unbuffered memory kits (total 32GB, up to 4 DIMM slots available)
• 2 x HPE 2TB SATA 6G Business Critical 7.2K LFF LP multi‑vendor HDDs (total 4TB raw capacity)
• HPE MR408i‑p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug‑in Storage Controller
• HPE 96W Smart Storage Lithium‑ion Battery with 260mm Cable Kit
• Broadcom BCM5719 Ethernet 1Gb 4‑port BASE‑T Adapter
• Dual HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kits

This specification gives businesses in Bangladesh a robust, redundant, and secure on‑premise server platform for file sharing, basic databases, small ERP/CRM systems, virtualization of a few VMs, domain controller roles, and line‑of‑business applications.

Processor & Chipset

The Intel Xeon E‑2414 is a 4‑core server‑grade CPU running at 2.6GHz, with a 12MB cache and a 55W TDP. It is designed for entry‑level server workloads where reliability and consistency are more important than sheer core count. With four physical cores and Intel’s Xeon feature set, it is suitable for:

• Small Windows or Linux servers
• Active Directory, DNS, DHCP
• Lightweight file and print roles
• Small application servers and branch office workloads

The Intel C262 chipset is a server‑class chipset that provides support for ECC memory, PCIe expansion, and the advanced management features HPE exposes through their firmware and iLO ecosystem. Compared to using a desktop board, this chipset offers better stability, validation, and lifecycle support—important for 24/7 server usage in Bangladesh offices.

Memory (RAM)

This ML30 Gen11 configuration includes:

• 2 x 16GB DDR5‑4800 CAS‑40 Unbuffered memory (total 32GB)
• Up to 4 DIMM slots available

DDR5‑4800 memory offers higher bandwidth and efficiency than DDR4, which improves performance in file and application serving, virtualization of a few light VMs, and general multitasking. 32GB is more than sufficient for a typical small office server handling domain services, file shares, and a few business applications. The system can be upgraded in the future by filling the remaining two DIMM slots, up to the supported maximum (4 DIMM slots total).

Storage & Hardware RAID

The storage configuration is a strong point for this server:

• 2 x HPE 2TB SATA 6G Business Critical 7.2K LFF LP HDDs (4TB total raw)
• HPE MR408i‑p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug‑in Storage Controller
• HPE 96W Smart Storage Lithium‑ion Battery with 260mm Cable Kit

This combination provides true hardware RAID with a 4GB cache and a dedicated Smart Storage Battery for write‑cache protection. In Bangladesh environments where power cuts and fluctuations are common, having a battery‑backed RAID controller is a major reliability advantage. Even if power is suddenly lost, the cached writes are preserved and later committed to disk when power returns, reducing the chance of filesystem corruption and data loss.

With 2 x 2TB LFF drives, you can configure RAID 1 (mirroring) for redundancy, which is recommended for critical data. If you later add more drives to the 4 LFF hot‑plug bays, you can adopt RAID 5 or RAID 10 depending on your capacity and performance goals.

The 4 LFF media bays (standard 4LFF hot‑plug) provide room for growth. You can start with 2 drives in RAID 1 and add drives later for additional volumes or increased capacity.

Network & Connectivity

Networking is handled by:

• Broadcom BCM5719 Ethernet 1Gb 4‑port BASE‑T adapter
• 4 x 1GbE embedded NIC (RJ‑45)

Four 1GbE ports give you flexibility to segregate traffic:

• One port for production/application traffic
• One for backup/replication
• One for management/iLO (if configured)
• One for a second network/VLAN or future use

In many Bangladesh offices, 1GbE is still standard and sufficient. The four‑port design also allows link aggregation (depending on switch support), improving redundancy and throughput.

Graphics & Video Output

The server includes basic integrated video:

• Video modes up to 1920 x 1200 @ 85Hz (16 bpp)
• 16MB video memory
• 1 rear VGA port
• 1 rear DisplayPort

This is entirely adequate for local console access, system installation, and troubleshooting. Most server operations will be done via remote management (iLO / OneView) or through remote desktop/SSH sessions.

Power & Cooling

Power resilience is a major plus here:

• 2 x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kits
• Platinum efficiency, hot‑plug, flex slot design

Dual 500W Platinum PSUs allow you to run the server in a redundant power supply configuration. If one PSU fails, the other continues to power the system. In Bangladesh, where power fluctuations and outages are frequent, pairing dual PSUs with a good UPS and possibly separate power circuits can significantly increase uptime.

A standard system fan setup ensures proper cooling within the tower chassis. The ML30 Gen11 is designed to operate in typical office or small server room environments (with adherence to ASHRAE conditions where possible). Ensuring adequate ventilation and avoiding clutter around the chassis is important in warm Bangladeshi climates.

Expansion & Interfaces

The HPE ProLiant ML30 Gen11 offers:

• 1 x PCIe 5.0 slot
• 3 x PCIe 4.0 slots

This allows you to add additional network cards, HBAs, backup controllers, or other expansion cards as your needs grow.

Interfaces include:

• Video: 1 x rear VGA, 1 x rear DisplayPort
• Serial: 1 optional rear serial port (if configured)
• Network: 4 x 1GbE embedded NIC (RJ‑45)
• iLO Management Port: Network port 1 is shared for production and iLO data; optional dedicated 1Gb management NIC (RJ‑45) available if required
• USB (8 ports total, standard):
  • Front: 2 x USB Type‑A (1 x USB 3.2 Gen 1x1, 1 x USB 2.0 iLO service port)
  • Rear: 4 x USB 3.2 Gen 1x1 Type‑A
  • Internal: 2 x USB 3.2 Gen 2x1

This wealth of USB ports is useful in Bangladesh offices for connecting external backup drives, USB installers, dongles, and other peripherals when needed.

Remote Management & OS Support

Remote management:

• HPE OneView for ProLiant DL Server including 3‑year 24x7 Support FIO Bundle, Physical 1‑server LTU

Although OneView is mentioned as “for ProLiant DL Server,” this license bundle gives you advanced management capabilities consistent across supported ProLiant models, including centralized monitoring, firmware management, and configuration control. Combined with iLO features, it simplifies server management for IT teams.

Supported operating systems (as listed):

• Microsoft
• VMware
• Red Hat
• SUSE
• Canonical Ubuntu
• Oracle Linux

This broad OS support ensures you can run Windows Server, Hyper‑V, VMware ESXi, and popular enterprise Linux distributions on your HPE ProLiant ML30 Gen11 in Bangladesh without compatibility surprises.

Security & Compliance

Security on the ML30 Gen11 is extensive:

• UEFI Secure Boot and Secure Start
• Immutable Silicon Root of Trust
• FIPS 140‑2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• AES and 3DES support in browser
• Support for CNSA (Commercial National Security Algorithms)
• iLO security modes and granular control over interfaces
• Smart card (PIV/CAC) and Kerberos‑based two‑factor authentication
• Tamper‑free updates (digitally signed firmware)
• Secure recovery to known good firmware
• Firmware rollback
• Secure erase of NAND/user data
• Embedded TPM 2.0 (enabled as needed; note about China shipments not relevant to BD)
• Front bezel key‑lock, padlock slot, Kensington lock
• Intel TXT (Trusted Execution Technology)

For Bangladesh businesses that need to comply with internal or external security standards—such as banks, insurers, payment processors, healthcare providers, and regulated entities—these features make the HPE ProLiant ML30 Gen11 a very strong choice for on‑premise infrastructure.

Industry standard compliance includes ACPI 6.3, PCIe 5.0, WOL, PXE, USB 3.2, SMBIOS 3.2, UEFI 2.9 (Class 3), Redfish API, IPMI 2.0, SNMP v3, TLS 1.2, Active Directory, ASHRAE A3/A4, Energy Star 4.0, and EU Lot 9. These standards help ensure interoperability, manageability, and energy efficiency.

✅ Key Features

• Intel Xeon E‑2414 2.6GHz 4‑Core CPU: Reliable entry‑level server processor with 12MB cache and 55W TDP for small business workloads.
• DDR5‑4800 Memory (Up to 4 DIMMs): 2 x 16GB standard (32GB total) with room for expansion, providing high bandwidth and efficiency.
• Enterprise‑Class Hardware RAID: HPE MR408i‑p Gen11 controller with 4GB cache and 96W Smart Storage Battery for safe, high‑performance RAID.
• Redundant, High‑Efficiency Power: 2 x 500W Flex Slot Platinum Hot Plug PSUs help ensure uptime and energy savings.
• 4 LFF Hot Plug Bays: Standard 4 large‑form‑factor drive bays, populated with 2 x 2TB SATA 6G 7.2K drives for 4TB raw capacity.
• Robust Networking: Broadcom BCM5719 4‑port 1GbE BASE‑T adapter supports flexible network layouts and redundancy.
• Modern Expansion & Interfaces: 1 x PCIe 5.0 and 3 x PCIe 4.0 slots plus 8 USB ports (front/rear/internal) for expansion and connectivity.
• Advanced Security & Compliance: TPM 2.0, silicon root of trust, FIPS/Common Criteria certifications, secure boot, and extensive security controls.

✅ Usage / Applications

• Small Business Main Server: Host file shares, user profiles, print services, and basic line‑of‑business applications for SMEs in Bangladesh.
• Domain Controller & Directory Services: Run Active Directory, DNS, DHCP, and authentication services for offices and branches.
• Entry‑Level Virtualization Host: Run a handful of light VMs (Windows or Linux) consolidating multiple roles on one machine.
• Branch Office / Remote Site Server: Provide local services at branches, retail outlets, or remote sites, synchronized with head office.
• Light Database & ERP/CRM Server: Support smaller SQL databases and business applications that don’t require large multi‑socket servers.
• Backup & Archival Server: Store backups and archives of workstations and smaller application servers.
• Education & Lab Server: Provide services for labs, classrooms, and small campus IT necessities.
• Secure On‑Premise Application Host: Host internal web apps and portals where data residency and control are important.

✅ Benefits of This Product?

• Balanced Power for SMEs: Right‑sized CPU, RAM, and storage capabilities for typical small and mid‑sized business server workloads.
• High Data Protection: Hardware RAID with battery‑backed write cache significantly reduces the risk of data loss during power issues.
• Redundancy & Uptime: Dual PSUs and RAID‑capable storage design support continuous operation in challenging Bangladesh power conditions.
• Scalable & Future‑Ready: DDR5 memory, PCIe 5.0 and 4.0 slots, and 4 LFF bays provide an upgrade path as your business grows.
• Strong Security Posture: Extensive hardware and firmware security features help meet corporate, regulatory, and compliance requirements.
• Easy Office Deployment: Tower form factor fits in small server rooms and offices without the need for a dedicated rack.
• Broad OS & Virtualization Support: Official support for Microsoft, VMware, and major Linux distributions simplifies integration with existing IT strategies.

✅ Ideal For

The HPE ProLiant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server is ideal for small to medium businesses, branch offices, and professional firms in Bangladesh that need a reliable, secure, and manageable on‑premise server without the cost and complexity of full rack infrastructure. It’s a strong fit for accounting firms, legal chambers, trading houses, small factories, clinics, schools, NGOs, and local head offices that rely on shared data, small databases, and internal applications.

Organizations that plan to run a domain controller, file server, and a couple of application servers (either physical or virtual) will find this ML30 Gen11 configuration particularly suitable. It’s also a good entry point for businesses moving away from peer‑to‑peer file sharing towards a centralized, professionally managed server architecture. For IT integrators and consultants in Dhaka, Chattogram, Sylhet, and other cities, the ML30 Gen11 offers a standardized, trusted platform for SME deployments.

✅ Why Choose the HPE ProLiant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server?

Choosing the HPE ProLiant ML30 Gen11 Intel Xeon E‑2414 Hardware RAID Tower Server gives you a purpose‑built server, not a re‑badged desktop. The combination of an Intel Xeon E‑class CPU, Intel C262 chipset, DDR5 memory support, and HPE’s Smart Storage architecture means the platform is engineered for 24/7 uptime, data integrity, and professional manageability.

The inclusion of the HPE MR408i‑p RAID controller with 4GB cache and a Smart Storage Battery is a major differentiator compared to entry‑level systems that rely on software RAID or low‑end controllers. For Bangladesh’s power environment, having battery‑protected RAID caching is a practical safeguard. Dual 500W Platinum PSUs further increase resilience and efficiency, making the server suitable for continuous operation in small server rooms with a UPS.

On the security side, features like silicon root of trust, TPM 2.0, FIPS and Common Criteria certifications, and secure recovery capabilities are usually found in higher‑end servers. You get these in a tower form factor that is accessible and easy to place in a typical office. Combined with broad OS support, modern network options, and a manageable upgrade path, the HPE ProLiant ML30 Gen11 stands out as a well‑balanced, enterprise‑grade solution for SME‑scale deployments in Bangladesh.

✅ Why Buy This Product from BME?

BME is a Bangladesh‑based IT and business equipment seller that focuses on genuine, enterprise‑grade hardware. Buying the HPE ProLiant ML30 Gen11 Intel Xeon E‑2414 Hardware RAID Tower Server from BME means you’re working with a local partner that understands server sizing, power considerations, and deployment contexts in Bangladesh.

BME can help you:

• Match this ML30 Gen11 with suitable UPS units, switches, and backup solutions.
• Plan disk, RAM, and network expansions based on your real workloads.
• Integrate the server into existing infrastructure in Dhaka and other regions, whether that’s a small server room or a simple office corner.

Because BME works with professional and corporate customers, they can advise on basic best practices around placement, cooling, and backup—even before installation. Warranty and after‑sales support follow HPE and authorized distributor standards in Bangladesh, and BME can guide you through documentation and RMA processes if needed. For an investment that will likely serve as your main server for several years, this local support and clarity are important.

✅ Buying Guide

• Define Your Roles: Decide what this server will do—domain controller, file server, ERP/CRM backend, virtualization host, or a mix. This drives RAM and storage planning.
• Plan RAID Layout: With 2 x 2TB drives, RAID 1 is the logical choice for redundancy. If you expect larger datasets, consider adding more drives and planning RAID 5 or RAID 10.
• Assess RAM Needs: 32GB DDR5 is a strong start. For more VMs or heavier applications, consider expanding to 64GB or more over time.
• Ensure Power Protection: Use a UPS sized appropriately for dual 500W PSUs so that the server can shut down gracefully or ride through short outages.
• Verify OS & License Strategy: Budget for Windows Server, CALs, or Linux/VMware licenses as needed. Confirm OS support versions with your chosen software.
• Network Setup: Decide how to use the four 1GbE ports (e.g., production, backup, management) and ensure your switches support link aggregation or VLANs if you plan to use them.
• Physical Placement & Cooling: Place the tower in a well‑ventilated area, away from dust and direct heat. Avoid enclosing it tightly in a confined cabinet.
• Security Configuration: Enable TPM, configure UEFI Secure Boot, and apply iLO/OneView security policies according to your organization’s standards.
• Backup & DR Planning: Integrate with backup software or appliances so that data on the ML30 is regularly backed up and tested for recovery.
• Consult BME: Before finalizing, discuss your scenarios with BME to confirm the configuration and any recommended add‑ons (extra drives, RAM, NICs, UPS).

✅ Customers Ask About / Frequently Asked Questions

Q1: Is the HPE ProLiant ML30 Gen11 suitable as a first server for a small office in Bangladesh?
A1: Yes. It is designed exactly for small and medium businesses needing their first proper on‑premise server for file sharing, domain services, and small applications.

Q2: Can I run multiple virtual machines on this server?
A2: Yes, within reason. With the Xeon E‑2414 and 32GB DDR5, you can run a handful of light VMs. For more or heavier VMs, consider upgrading RAM and carefully sizing workloads.

Q3: What RAID levels does the MR408i‑p controller support?
A3: The MR408i‑p is a hardware RAID controller supporting common RAID levels (such as 0/1/5/10). For exact RAID support, refer to HPE’s documentation, but RAID 1 and RAID 10 are typical in such configurations.

Q4: How many hard drives can I install?
A4: The standard chassis supports 4 LFF hot plug bays. This configuration uses 2 of them (2 x 2TB). You can add up to 2 more drives later.

Q5: Does it come with an operating system preinstalled?
A5: The configuration list only mentions OS support, not a preinstalled OS. Typically, OS licenses are purchased separately. Confirm with BME whether an OS is bundled.

Q6: Is this server noisy for a small office?
A6: It is a server‑class machine, so it will be louder than a desktop. Placing it in a small server room or corner away from workstations is recommended.

Q7: Can I manage this server remotely?
A7: Yes. With HPE iLO and the OneView bundle, you can manage the server remotely, including power control, monitoring, and firmware updates, once configured.

Q8: How secure is my data on this server?
A8: Between the hardware RAID with battery‑backed cache, TPM 2.0, secure boot, silicon root of trust, and strong firmware security, it offers robust protection. You should still implement OS‑level security and regular backups.

Q9: Is this server energy efficient?
A9: Yes. The 500W Flex Slot Platinum PSUs are high‑efficiency, reducing wasted energy and heat—important in Bangladesh’s climate and for electricity cost control.

Q10: How can I purchase this HPE ML30 Gen11 server from BME?
A10: Visit BME’s website or contact their sales team, ask for the “HPE ProLiant ML30 Gen11 Intel Xeon E‑2414 Hardware RAID Tower Server,” review the full configuration and quotation, then place your order.

✅ Why Buy This Product

The HPE ProLiant ML30 Gen11 Intel Xeon E-2414 Hardware RAID Tower Server brings enterprise‑grade reliability and security into a form factor and price point realistic for Bangladeshi SMEs and branch offices. With a dedicated Xeon E processor, fast DDR5 memory, battery‑backed hardware RAID, dual Platinum PSUs, and extensive security compliance, it is far more robust than consumer‑grade hardware repurposed as a “server.”

By deploying this ML30 Gen11 as your core on‑premise server, you gain centralized control over your data, applications, and user access, while keeping critical services close to your users for low latency and resilience against internet disruptions. Purchasing through BME gives you a trusted local partner to help integrate the server into your environment and support it over its lifetime. For businesses and organizations in Bangladesh looking to professionalize their IT foundation, this server is a practical, future‑ready choice.
