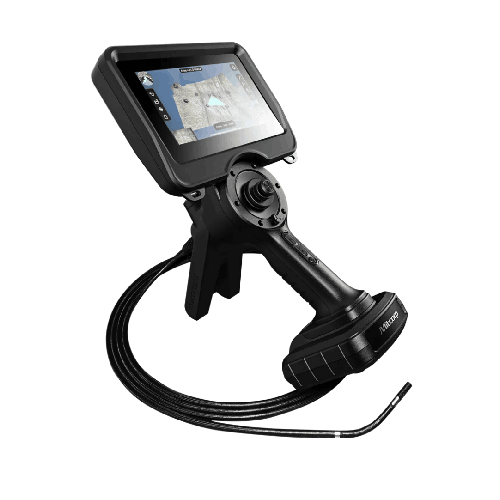

Mitcorp X3000 3D Measurement Industrial Videoscope

Mitcorp X3000 3D Measurement Industrial Videoscope in Bangladesh

Performing non-destructive testing (NDT) and internal quality assurance on complex industrial machinery requires high-precision optical instruments that can navigate tight spaces without equipment teardown. When inspecting high-risk assets like turbine engines, power generation reactors, or aerospace airframes, operators need exact dimensional data to analyze defects reliably. The Mitcorp X3000 3D Measurement Industrial Videoscope stands out as an elite, cutting-edge inspection tool engineered for professional NDT technicians and quality control engineers. Distributed by Business Machine & Equipment (BME), this advanced videoscope brings state-of-the-art 3D phase scanning and dual-view imaging capabilities directly to industrial engineering teams in Dhaka, Chattogram, and nationwide facility hubs.

At the technical center of the X3000 is an advanced 3D measurement engine driven by phase scanning technology. This system allows operators to execute precise point-to-point, depth, and area sizing directly on captured inspection frames. Equipped with flexible, interchangeable probe options ranging from 1.5m to 7.5m in length and diameters of 4.0mm, 6.0mm, or 8.0mm, the videoscope accommodates diverse access ports. The 360° joystick-controlled motorized articulation ensures smooth, responsive navigation through complex internal pipe runs, weld seams, and turbine blade paths.

Visual data is managed through a sharp high-definition LCD touch screen paired with high-intensity LED illumination. Interchangeable forward-side view tip adapters and advanced digital image processing deliver crystal-clear imagery, even in dark, wet, or oily environments. Built for tough field environments, the probe and insertion tube carry an IP67 waterproof rating, resisting extreme operational temperatures between -20°C and 60°C. Data management is handled seamlessly via onboard SD card storage, USB export, or optional Wi-Fi connectivity.

Whether maintaining power plants, inspecting petrochemical pipelines, or verifying automotive components, utilizing a high-end 3D videoscope minimizes costly downtime. BME ensures that industrial operators across Bangladesh gain direct access to original Mitcorp diagnostic hardware backed by dependable local support and clear purchasing standards.

✅ Key Features

• Advanced 3D Phase Scanning: Delivers precise depth, area, and point-to-point defect measurements in three-dimensional space.

• 360° Motorized Articulation: Joystick-driven probe steering provides smooth, responsive navigation through complex internal spaces.

• Interchangeable Probes: Supports multiple probe diameters (4.0mm, 6.0mm, 8.0mm) and lengths (1.5m to 7.5m) for varied applications.

• High-Definition Touch Display: Features a clear HD LCD touchscreen for intuitive menu navigation and real-time visualization.

• IP67 Waterproof Probes: Insertion tubes are built to withstand wet, oily, and harsh industrial environments.

• Robust Data Export: Supports image and video capture (JPEG/MPEG4) with storage via SD card or USB up to 128GB.

• Flexible Lighting: High-intensity adjustable LED illumination ensures clear target visibility in dark cavities.

✅ Usage / Applications

• Aerospace Maintenance: Inspecting turbine engine blades, combustion chambers, and structural airframe components.

• Power Generation Facilities: Examining gas and steam turbines, boilers, and nuclear reactor internal pipelines.

• Oil & Gas Refineries: Performing non-destructive testing (NDT) on high-pressure piping, valves, and offshore installations.

• Automotive Manufacturing: Evaluating internal engine blocks, castings, and weld integrity to meet strict quality control standards.

• Heavy Machinery Overhauls: Checking gearboxes, hydraulic cylinders, and closed-loop vessels without complete disassembly.

• Complex Municipal Piping: Tracing corrosion, cracking, and blockage defects across industrial drainage and structural conduits.

✅ Benefits of This Product?

• Eliminates Costly Teardowns: Allows precise internal inspection and measurement without dismantling heavy machinery.

• Quantifiable Defect Analysis: 3D phase scanning provides exact numerical measurements of crack depths and pit areas rather than visual estimates.

• Enhanced Navigation Control: Motorized 360° articulation lets operators maneuver around tight bends effortlessly.

• All-Weather Field Reliability: Rugged IP67 probe construction ensures dependable performance in wet and dirty industrial zones.

• Streamlined Documentation: Onboard storage and quick data export simplify compliance reporting and client audits.

• Reduces Operational Risk: Early detection of micro-fractures prevents catastrophic equipment failure during active production cycles.

✅ Ideal For

Quality assurance managers, NDT inspection specialists, aerospace engineers, power plant technicians, and heavy industrial maintenance supervisors operating across Bangladesh. It serves professionals handling critical asset integrity management where absolute visual clarity and precise dimensional measurement are mandatory.

✅ Why Choose the Mitcorp X3000 Industrial Videoscope?

Selecting the Mitcorp X3000 means investing in top-tier industrial inspection technology designed to handle the most demanding diagnostic challenges. While basic borescopes only provide raw visual feeds, the X3000 integrates certified 3D measurement algorithms that turn visual observations into quantifiable engineering data. Its durable IP67 build, intuitive touchscreen controls, and versatile probe options address the real-world demands faced by technical teams working on location. For growing industrial operations that demand precision and reduced asset downtime, this videoscope delivers unmatched professional value.

✅ Why Buy This Product from BME?

Purchasing from Business Machine & Equipment (BME) guarantees access to original industrial testing and NDT hardware sourced specifically for professional users in Bangladesh. BME focuses on supplying authentic equipment supported by clear product specifications and dependable customer guidance. Corporate buyers and plant procurement teams benefit from transparent pricing, straightforward purchasing processes, and responsive service tailored to local business requirements. Dealing with a trusted local supplier ensures your critical diagnostic equipment arrives safely and ready for deployment.

✅ Buying Guide

• Select the Right Probe Dimensions: Choose the appropriate probe diameter (4.0mm, 6.0mm, or 8.0mm) and length (1.5m to 7.5m) matching your primary inspection access points.

• Verify Environmental Rating: Ensure the target area temperature stays within the -20°C to 60°C operating window before inserting the probe.

• Perform System Calibration: Always complete a baseline system calibration using standard targets prior to executing critical 3D measurements.

• Maintain Optical Cleanliness: Clean the camera tip and lens adapters using approved optical wipes after every session to prevent grease buildup.

• Storage Care: Store the console and flexible probe safely inside its protective heavy-duty carrying case when transporting between job sites.

✅ Customers Ask About / Frequently Asked Questions

• What measurement technology does the Mitcorp X3000 use?

  It utilizes advanced 3D phase scanning technology to calculate depth, area, and point-to-point dimensions.

• Are the probe tubes interchangeable?

  Yes, the system supports interchangeable probes available in varying diameters and lengths.

• Is the articulation manual or motorized?

  The probe features smooth, 360° joystick-controlled motorized articulation.

• What is the waterproof rating of the probe?

  The probe and insertion tube carry an IP67 waterproof rating.

• How are inspection files saved and exported?

  Data can be captured as JPEG images or MPEG4 videos and exported via SD card or USB (supporting up to 128GB).

• What screen size and type does the display unit feature?

  It features a high-definition 5.7-inch LCD touchscreen interface.

• Can the X3000 operate in extreme temperatures?

  Yes, the system is rated for operating ambient temperatures between -20°C and 60°C.

• Is this videoscope suitable for aerospace and power plant inspections?

  Yes, it is specifically designed for high-precision NDT applications in aerospace, power generation, and oil & gas sectors.

✅ Why Buy This Product

Order the Mitcorp X3000 today to elevate your internal asset inspection capabilities and achieve precise 3D defect measurement. Equip your engineering team with an industry-leading industrial videoscope built for accuracy, durability, and operational excellence.
