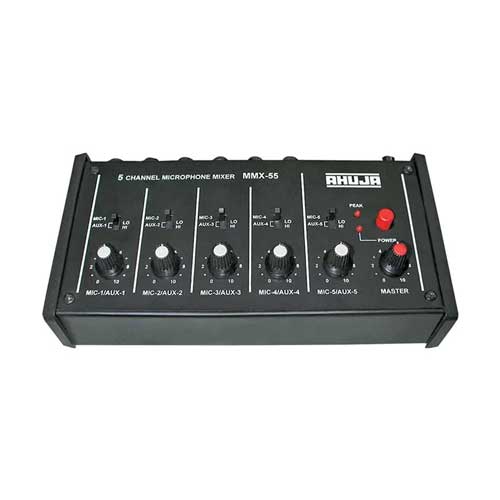

Ahuja MMX-55 PA Mixer Amplifiers in Bangladesh

The Ahuja MMX-55 PA Mixer Preamplifier is a compact, general-purpose 5-channel audio mixer designed for professional and commercial public address applications where multiple microphone and auxiliary audio sources need to be combined and controlled through a single compact unit. Manufactured by Ahuja, the MMX-55 focuses on straightforward operation, flexible input sensitivity, individual channel volume adjustment, and reliable AC or 12V DC operation.

Unlike a powered PA mixer amplifier, the Ahuja MMX-55 functions as a mixer preamplifier. It does not directly provide a high-power speaker output such as 4Ω, 8Ω, or 100V speaker terminals. Instead, its 200mV/600Ω preamp output can be connected to a compatible power amplifier, mixer amplifier, or other appropriate PA equipment. This makes it particularly useful as the signal-management stage of a larger public address system.

The MMX-55 provides five microphone/auxiliary input channels, allowing users to combine several audio sources within a single system. Each input has its own volume control, giving the operator independent control over the contribution of individual sources. This is useful when multiple microphones, media players, or other line-level sources need to be used simultaneously.

Compact 5-Channel PA Mixer Design

The primary advantage of the Ahuja MMX-55 is its compact five-channel architecture. Ahuja describes it as a Compact General Purpose 5 Channel PA Mixer Preamplifier, making it suitable for applications that require more input flexibility than a basic single-input microphone preamplifier while avoiding the size and complexity of a larger mixing console.

The five channels can accommodate microphone or auxiliary sources. This provides a practical configuration for installations where several speakers or audio devices may need to be connected to the same PA chain.

For example, a public address setup could use multiple microphones for different speakers while reserving other channels for auxiliary playback equipment. Because every input has an individual volume control, the operator can adjust each source independently rather than relying on a single overall level adjustment.

This approach makes the MMX-55 particularly appropriate for schools, offices, meeting spaces, religious facilities, commercial establishments, announcements, and other general-purpose PA installations where simple and dependable audio mixing is more important than advanced studio-style processing.

Five Mic/Aux Input Channels

The Ahuja MMX-55 provides 5 × microphone inputs and 5 × auxiliary inputs, with the inputs sharing channel positions through selectable sensitivity. The official specification lists microphone sensitivity at 0.6mV/4.7kΩ, auxiliary low sensitivity at 50mV/470kΩ, and auxiliary high sensitivity at 150mV/470kΩ.

This configuration gives the mixer considerable flexibility for a unit of its compact size.

Microphone sources generally produce much lower signal levels than conventional line-level audio equipment. The dedicated microphone sensitivity allows the MMX-55 to accommodate microphone signals appropriately, while the selectable auxiliary sensitivity allows compatible external audio sources to be connected.

The five-channel arrangement is particularly useful when several audio sources need to be managed without investing in a large multi-channel console.

Selectable HI/LO Auxiliary Sensitivity

One of the MMX-55's most useful features is its selectable HI/LO sensitivity for auxiliary inputs. Ahuja specifically identifies this as a core feature of the model.

The auxiliary inputs support two published sensitivity levels: 50mV/470kΩ and 150mV/470kΩ. The microphone and auxiliary sensitivity selection allows each input channel to be configured for the appropriate source type.

This flexibility can be valuable because external audio devices do not necessarily produce identical signal levels. A media player, audio source, or other auxiliary device may require a different input sensitivity from a microphone.

Instead of forcing every source through the same input level, the MMX-55 provides a simple way to accommodate different signal strengths.

Individual Volume Control for Every Input

The MMX-55 provides separate volume control for each MIC/AUX input. This is one of the most practical features for real-world PA operation.

When multiple microphones or auxiliary sources are connected, the operator can adjust each channel individually. This helps maintain a useful balance between speakers, presenters, background audio, and other connected sources.

For example, if one microphone is louder than another, its channel level can be adjusted independently. Likewise, an auxiliary audio source can be reduced without necessarily changing the microphone levels.

This type of independent channel management is especially useful in meeting rooms, classrooms, training facilities, community halls, offices, and other environments where audio sources can change frequently.

Peak LED for Input Level Monitoring

Ahuja includes a peak LED on the MMX-55 for setting optimum input levels and helping avoid distortion caused by excessive signal levels.

Input-level monitoring is an important part of good PA operation. If an input signal is driven too hard, unwanted distortion can occur. The peak indicator provides a visual reference that helps the operator establish a more appropriate input level.

This is especially helpful for users who may not require a complicated professional mixing console. The MMX-55 keeps the basic level-monitoring function straightforward and accessible.

Wide 20Hz–20kHz Frequency Response

The Ahuja MMX-55 is specified with a frequency response of 20Hz–20,000Hz ±3dB.

This specification describes the frequency range over which the mixer preamplifier is designed to process audio within the stated tolerance.

For general PA applications, a broad frequency response is useful because the mixer may handle both speech and music sources. Voice applications depend heavily on the midrange frequencies required for intelligibility, while music contains information across a wider portion of the audible spectrum.

The MMX-55 therefore provides a suitable signal-processing range for general-purpose public address use without positioning itself as a specialized studio recording mixer.

Low Distortion

Ahuja specifies less than 1% distortion for the MMX-55.

Low distortion is important in a mixer preamplifier because the unit sits near the beginning of the audio signal chain. Poorly controlled distortion at the input or mixing stage can become more noticeable after the signal is amplified by downstream equipment.

The MMX-55's peak LED and individual input controls work together to help the operator establish appropriate signal levels.

Users should still operate the system within the recommended levels and use compatible equipment at the output stage.

40dB Signal-to-Noise Ratio

The current Ahuja specification lists a 40dB signal-to-noise ratio for the MMX-55.

Signal-to-noise ratio provides an indication of the relationship between the desired audio signal and background noise generated by the equipment.

In practical PA operation, appropriate gain settings and correct connections remain important. A mixer should be operated with suitable source levels rather than relying solely on maximum gain.

The MMX-55 is therefore designed around practical general-purpose PA mixing rather than specialized high-end studio recording applications.

200mV/600Ω Preamp Output

The MMX-55 provides 1 × preamp output rated at 200mV/600Ω.

This is a critical specification because it clarifies how the product should be used.

The MMX-55 is not itself a high-power speaker amplifier. Instead, it prepares and mixes incoming audio signals before passing the combined signal to another compatible amplification stage.

A typical system can therefore be structured as:

Microphones / Auxiliary Sources → Ahuja MMX-55 → Compatible Power Amplifier → PA Speakers

This makes the MMX-55 useful when an existing PA system needs a dedicated mixer stage or when a project requires multiple microphone and auxiliary inputs before the power amplification stage.

AC and 12V DC Operation

The Ahuja MMX-55 supports AC 220–240V, 50/60Hz operation as well as 12V DC operation from one 12V car battery.

This dual-power arrangement adds flexibility to the system design.

For fixed indoor installations, AC mains power provides the conventional operating method. The 12V DC option can be useful in mobile or specialized installations where a compatible 12V battery supply is available.

The ability to operate from a 12V car battery can also be useful in PA systems where battery-based operation is already part of the installation design.

Users should follow Ahuja's operating instructions and use an appropriate power source rather than connecting an unsuitable battery or power supply.

Compact Physical Construction

The current Ahuja product listing specifies dimensions of approximately 220 × 60 × 120mm and a weight of approximately 1.15kg.

These dimensions make the MMX-55 significantly more compact than a full-size multi-channel mixing console.

Its small footprint is useful when rack, desk, cabinet, or installation space is limited. It can be integrated into a broader PA setup without taking up the amount of space associated with a larger audio mixer.

Ahuja's published catalogue has slightly different dimensional figures for the model in older documentation, so the current product page values should be preferred when listing the product specifications.

Simple Operation

The MMX-55 is designed around simplicity. Instead of providing a large number of complex controls, it concentrates on the functions required for general PA mixing: input selection, individual volume adjustment, sensitivity selection, and peak monitoring.

This makes it suitable for organizations where several people may need to operate the PA system without extensive audio-engineering training.

For example, a school administrator may need to adjust microphone levels for an event, or an office operator may need to combine microphones and an auxiliary audio source. The compact control layout can make these tasks more manageable.

Suitable for Existing PA Systems

The MMX-55 can be particularly useful when a PA installation already has a compatible power amplifier but requires additional input management.

Instead of replacing the entire system, the mixer preamplifier can function as the front-end audio control stage.

This approach can be useful in educational institutions, offices, community spaces, halls, religious facilities, commercial establishments, and other locations where a PA amplifier and speakers are already installed.

Useful for Voice and Background Music

A general-purpose PA mixer needs to handle more than microphones. In many installations, users need to combine spoken announcements with background music or other auxiliary audio.

The MMX-55's five Mic/Aux channels provide the flexibility required for this type of mixed-source operation. Each channel can be individually controlled, allowing the operator to establish a suitable balance.

Because the unit has no built-in power amplifier output, the final speaker volume depends on the downstream power amplifier and speaker system connected to the preamp output.

Designed for General-Purpose PA Applications

The MMX-55 is best understood as a compact signal-mixing solution for public address systems.

Its feature set is intentionally straightforward. There is no need to manage an extensive studio-style control surface when the primary objective is to combine microphones and auxiliary sources for announcements, presentations, meetings, or general PA use.

The five-channel architecture provides more flexibility than a basic single microphone preamplifier while remaining compact enough for smaller installations.

A Practical Choice for Bangladesh PA Installations

For customers searching for an Ahuja MMX-55 PA mixer in Bangladesh, the product can be a practical option when reliable basic audio mixing and compact installation are the primary requirements.

Its AC/DC operation is particularly useful for systems that may require 12V battery compatibility, while its five Mic/Aux channels provide useful source flexibility.

Ahuja's current product documentation confirms the MMX-55 as part of its PA Audio Mixers range, alongside models such as the MX-15.

Important Difference Between a Mixer and Mixer Amplifier

Customers should understand the terminology before purchasing.

The Ahuja MMX-55 is a PA mixer preamplifier. It mixes and conditions incoming audio signals, then provides a preamp output. It does not directly drive passive PA speakers.

If the requirement is for an integrated unit with a built-in power amplifier and speaker outputs such as 4Ω, 8Ω, or 100V line, an Ahuja mixer amplifier from the appropriate product category should be selected instead. Ahuja lists dedicated medium-wattage PA mixer amplifiers separately from its PA audio mixers.

This distinction is important when selecting equipment for a complete PA installation.

✅ Key Features

• 5-Channel PA Mixer Preamplifier for general-purpose public address applications.
• 5 Mic/Aux Input Channels for flexible audio-source connection.
• Selectable HI/LO AUX Sensitivity for accommodating different auxiliary source levels.
• Separate Volume Control for Each MIC/AUX Input.
• Peak LED Indicator for setting optimum input levels and helping reduce distortion.
• 20Hz–20,000Hz Frequency Response ±3dB.
• Less Than 1% Distortion.
• 40dB Signal-to-Noise Ratio.
• 200mV/600Ω Preamp Output for connection to compatible downstream amplification equipment.
• AC 220–240V 50/60Hz Operation.
• 12V DC Operation using one compatible 12V car battery.
• Compact and Easy-to-Use Design.
• Lightweight Construction at approximately 1.15kg.
• Compact Dimensions of approximately 220 × 60 × 120mm according to the current Ahuja product listing.
• Suitable for Microphone and Auxiliary Audio Mixing.
• Useful as a Front-End Mixer for Existing PA Systems.
• Designed for General-Purpose Commercial and Institutional PA Applications.

✅ Ideal For

The Ahuja MMX-55 PA Mixer Preamplifier is ideal for installations where multiple microphones and auxiliary audio sources need to be combined before being sent to a separate power amplifier.

Schools and Educational Institutions

Schools can use the MMX-55 as the input-management stage of an existing PA system. Multiple microphones can be connected for announcements, assemblies, presentations, and events, while auxiliary sources can be used for music or other audio playback.

Offices and Corporate Spaces

Office environments can benefit from the compact design when microphones and auxiliary sources need to be routed through an existing amplification system for meetings, announcements, or presentations.

Community Halls

Community halls frequently require several microphone inputs for different speakers. The MMX-55 provides five channels with individual volume controls, allowing the operator to manage multiple sources.

Religious Institutions

The mixer can be integrated into an existing PA system where multiple microphones are required for speakers, announcements, and other audio sources.

Training Centers

Training facilities can use the MMX-55 to combine presenter microphones with auxiliary playback devices. Individual channel controls help the operator balance different sources.

Commercial Establishments

Shops, showrooms, factories, and other commercial locations can use a compact PA mixer as part of an announcement and background-audio system.

Existing PA Installations

The MMX-55 is particularly suitable when a compatible power amplifier and speakers already exist but additional input mixing capability is required.

✅ Why Choose Ahuja MMX-55?

The Ahuja MMX-55 is a practical choice when the objective is to obtain straightforward, reliable multi-input PA mixing without installing a large professional mixing console.

Its five Mic/Aux channels provide useful flexibility for general-purpose installations. Instead of limiting the system to one microphone or one audio source, users can connect multiple sources and control each channel separately.

The selectable auxiliary sensitivity is another important advantage. With 50mV and 150mV auxiliary sensitivity options, the mixer can accommodate different types of compatible auxiliary sources. This makes it more adaptable than a basic fixed-sensitivity input system.

The peak LED also provides practical assistance during setup and operation. Maintaining suitable input levels is important for reducing unwanted distortion, and the visual indicator gives the operator a convenient reference.

Another advantage is the MMX-55's AC and 12V DC operating capability. Ahuja specifies operation from 220–240V AC at 50/60Hz as well as 12V DC from one 12V car battery.

Its compact physical dimensions and approximately 1.15kg weight also make it convenient for installations where available space is limited. The current Ahuja product listing specifies approximately 220 × 60 × 120mm.

Most importantly, the MMX-55 is designed for a clear role within a PA system. It is not marketed as a high-power speaker amplifier. Instead, it acts as the mixing and preamplification stage, providing a 200mV/600Ω preamp output for connection to suitable downstream amplification equipment.

For buyers who need a compact Ahuja 5-channel PA mixer in Bangladesh, especially for schools, offices, halls, institutions, and existing PA installations, the MMX-55 provides a focused feature set without unnecessary complexity.

✅ Why Buy This Product?

The Ahuja MMX-55 PA Mixer Preamplifier is a practical solution for customers who need to combine multiple microphone and auxiliary sources in a compact audio system.

Its five Mic/Aux channels, individual volume controls, selectable auxiliary sensitivity, peak LED, wide 20Hz–20kHz frequency response, and 200mV/600Ω preamp output make it suitable for general-purpose PA applications.

The AC and 12V DC operating capability provides additional installation flexibility, while its compact size helps when space is limited.

If you are looking for an Ahuja MMX-55 in Bangladesh, a 5-channel PA mixer, or a compact microphone and auxiliary mixer preamplifier for an existing PA system, the MMX-55 is worth considering.

Before purchasing, however, make sure your system requires a mixer preamplifier rather than a powered mixer amplifier. The MMX-55 requires compatible downstream amplification to drive passive PA speakers.
